Electric Fence Energizer Installation Manual: A Step-by-Step Guide
Electric fences are a highly effective and efficient way to keep animals within a designated area or protect your property from intruders. An electric fence energizer (also known as a fence charger or power supply unit) is the heart of the system, converting standard electrical power into high-voltage pulses that travel through the wires of the fence. Installing an electric fence energizer is a critical step in ensuring that your fence functions properly and delivers the necessary power to deter animals or unauthorized people.
This manual will guide you through the process of installing an electric fence energizer, covering everything from choosing the right energizer to setting it up, grounding it, and troubleshooting common issues.
1. Choosing the Right Electric Fence Energizer
Before you begin the installation process, it’s essential to choose the right energizer for your electric fence system. Factors to consider include:
a. Size of the Area
The size of the area you want to enclose is one of the most significant factors in determining the type of energizer you'll need. Generally, the larger the area, the more powerful the energizer should be. For example:
- Small areas or yards may only require a low-power energizer (typically around 0.5 to 1 joule).
- Larger areas, such as fields or pastures, will require more powerful energizers (typically 5 to 10 joules or higher).
b. Type of Fence
The type of electric fence also affects the choice of energizer. For instance:
- Single-wire systems will require less power than multi-wire systems.
- High-resistance fences, like those in areas with dry or sandy soil, will require a more powerful energizer.
c. Voltage Output
The voltage output of the energizer determines how effective it will be at deterring animals or people. A typical electric fence energizer should provide a minimum of 2000 to 3000 volts for effective control.
d. Power Source
Electric fence energizers can be powered by several sources:
- AC (Alternating Current): Requires an electrical outlet and is commonly used for large fence installations.
- DC (Direct Current): Powered by batteries, this is ideal for smaller, remote areas where AC power is unavailable.
- Solar-powered: Solar energizers are environmentally friendly and work well for off-grid applications.
2. Tools and Materials Needed
Before starting the installation, gather the following tools and materials:
- Electric fence energizer
- Fence posts (wooden, metal, or plastic)
- Electric fence wire (preferably high-tensile wire or polywire)
- Insulators for mounting the wire
- Ground rods and wire (for grounding the energizer)
- Battery (if you’re using a battery-powered energizer)
- Voltage tester
- Fence connectors and wire crimps
- Insulated gloves
- Screwdrivers, pliers, and other basic hand tools
3. Installing the Electric Fence Energizer
Follow these steps to install your electric fence energizer:
Step 1: Select the Location for the Energizer
Choosing the right location for your energizer is important for safety, efficiency, and ease of maintenance. Here are some guidelines:
- Weather Protection: Place the energizer in a dry, sheltered area to prevent exposure to rain, snow, or moisture. Ideally, it should be mounted on a sturdy post or wall.
- Accessibility: Ensure that the energizer is easily accessible for maintenance, such as checking power levels or replacing batteries.
- Near the Fence: The energizer should be installed close to the fence but not so close that it could be damaged by animals or harsh weather conditions.
Step 2: Mount the Energizer
- Wall or Post Mounting: Most energizers come with brackets or mounting options for either wall or post installation. Secure the energizer to a sturdy surface at least 3-5 feet above the ground to keep it safe from animals or debris.
- Check Manufacturer Instructions: Different energizers have different mounting specifications, so follow the manufacturer’s installation instructions for your specific model.
Step 3: Grounding the Energizer
Proper grounding is critical for the effective operation of an electric fence energizer. The energizer will not work properly without a proper ground connection. Here’s how to ground the energizer:
- Install Ground Rods: Use two or more 6- to 8-foot long ground rods made of copper or galvanized steel. Install the rods at least 10 feet apart.
- Connecting Ground Wires: Connect a thick ground wire (preferably copper) from the energizer’s ground terminal to the ground rods. Make sure the connection is secure and tight.
- Avoid Connecting to Existing Grounding Systems: Do not use the same ground as other electrical systems (such as house electrical grounding), as it may affect the performance of the energizer.

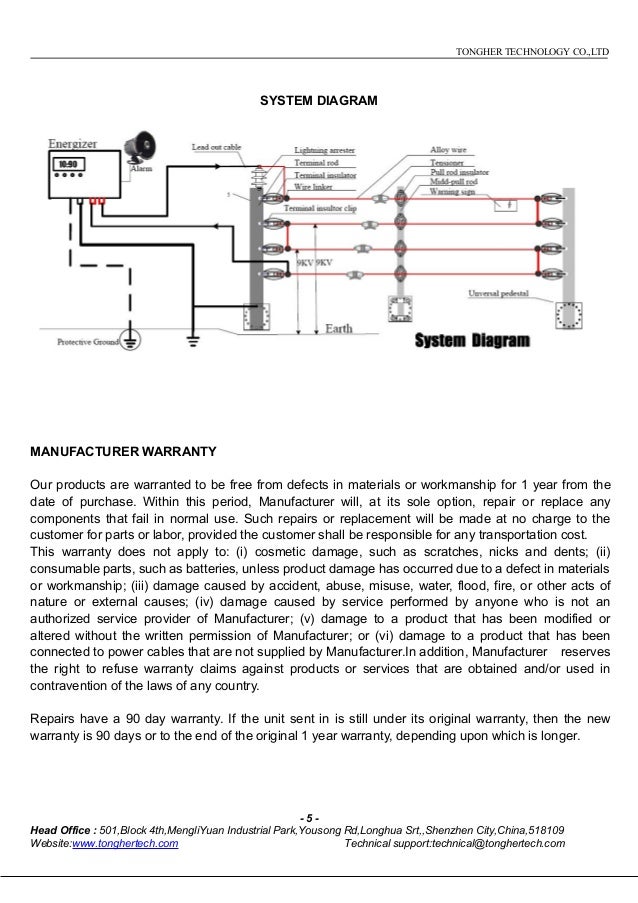

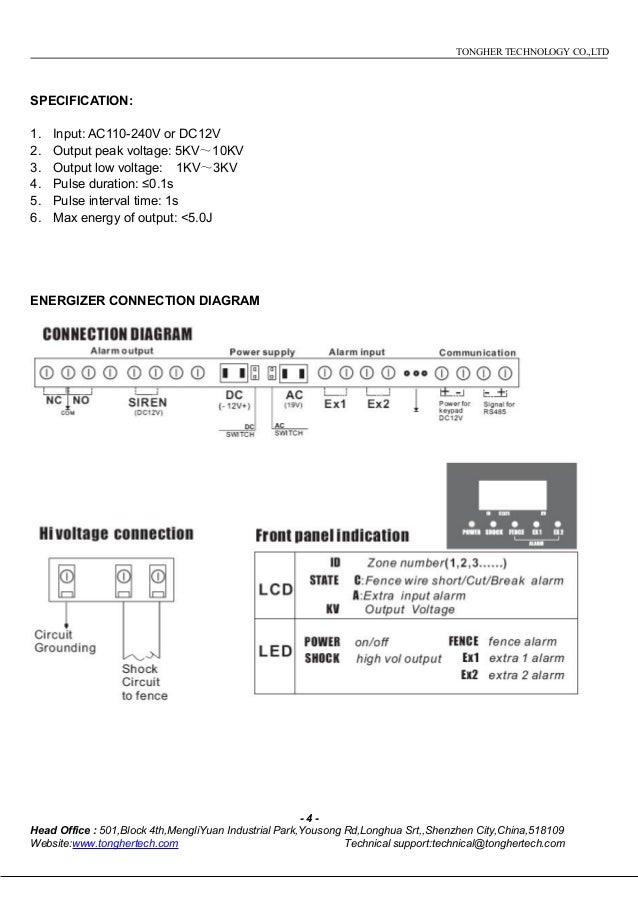

Step 4: Wiring the Energizer
- Connecting the Fence Wire: Connect the output terminal of the energizer to the first section of fence wire using a fence connector. Be sure to use a weatherproof connector to protect the connection from the elements.
- Run the Fence Wire: Lay out the fence wire along the perimeter of the area you want to enclose, securing it to the fence posts with insulators. Be sure the wire doesn’t touch trees, shrubs, or other conductive materials.
- Connect Additional Fence Sections: If you’re installing a multi-wire fence, connect additional wires as needed to create a complete circuit.
Step 5: Testing the Fence
Once the energizer is wired, it’s important to test the system:
- Turn on the Energizer: Power up the energizer by switching it to the "on" position. If you're using a solar-powered energizer, ensure it has been fully charged before use.
- Check Voltage: Use a fence voltage tester to check the voltage at different points along the fence. The voltage should be strong enough to deter animals but not so high that it becomes dangerous to humans. A voltage reading of 2000 to 3000 volts is typically sufficient.
- Inspect for Short Circuits: Walk the fence line and check for any wires touching vegetation, metal objects, or anything else that could cause a short circuit. If you find any shorts, repair them immediately.
Step 6: Adjust Settings
If your energizer has adjustable settings, make sure to configure it according to your needs. For example, you may need to increase the voltage for more challenging animals or weather conditions.
4. Troubleshooting Common Issues
If you experience issues with your electric fence, here are some common problems and troubleshooting tips:
- Low Voltage: If the voltage is low, check the battery (if applicable) or the power source. Ensure the energizer is properly grounded and that there are no shorts or obstructions on the fence line.
- No Power: If the energizer isn’t producing any power, check the connections and ensure the energizer is turned on. If using a solar energizer, ensure it’s been charged adequately by the sun.
- Fence Not Shocking: If the fence isn’t delivering a shock, ensure that the fence wires are properly connected, the grounding is correct, and the energizer is producing the necessary voltage.
5. Maintenance Tips
To ensure your electric fence energizer operates efficiently, it’s important to perform regular maintenance:
- Clean the Energizer: Periodically check the energizer for dust, dirt, and debris. Clean the unit with a soft cloth and mild detergent.
- Check Connections: Ensure all wire connections are secure and corrosion-free.
- Test the Voltage: Regularly test the voltage at various points along the fence to make sure it remains strong.
Conclusion
Installing an electric fence energizer is a straightforward process if you follow the steps outlined in this manual. By selecting the right energizer, properly grounding the unit, connecting the fence wires, and performing regular maintenance, you can ensure that your electric fence operates efficiently and reliably. Whether you're using the fence to contain livestock, protect crops, or keep intruders away, a well-installed energizer will provide the power needed for an effective electric fence system.
